OMNI-Mag Superconducting Magnet System

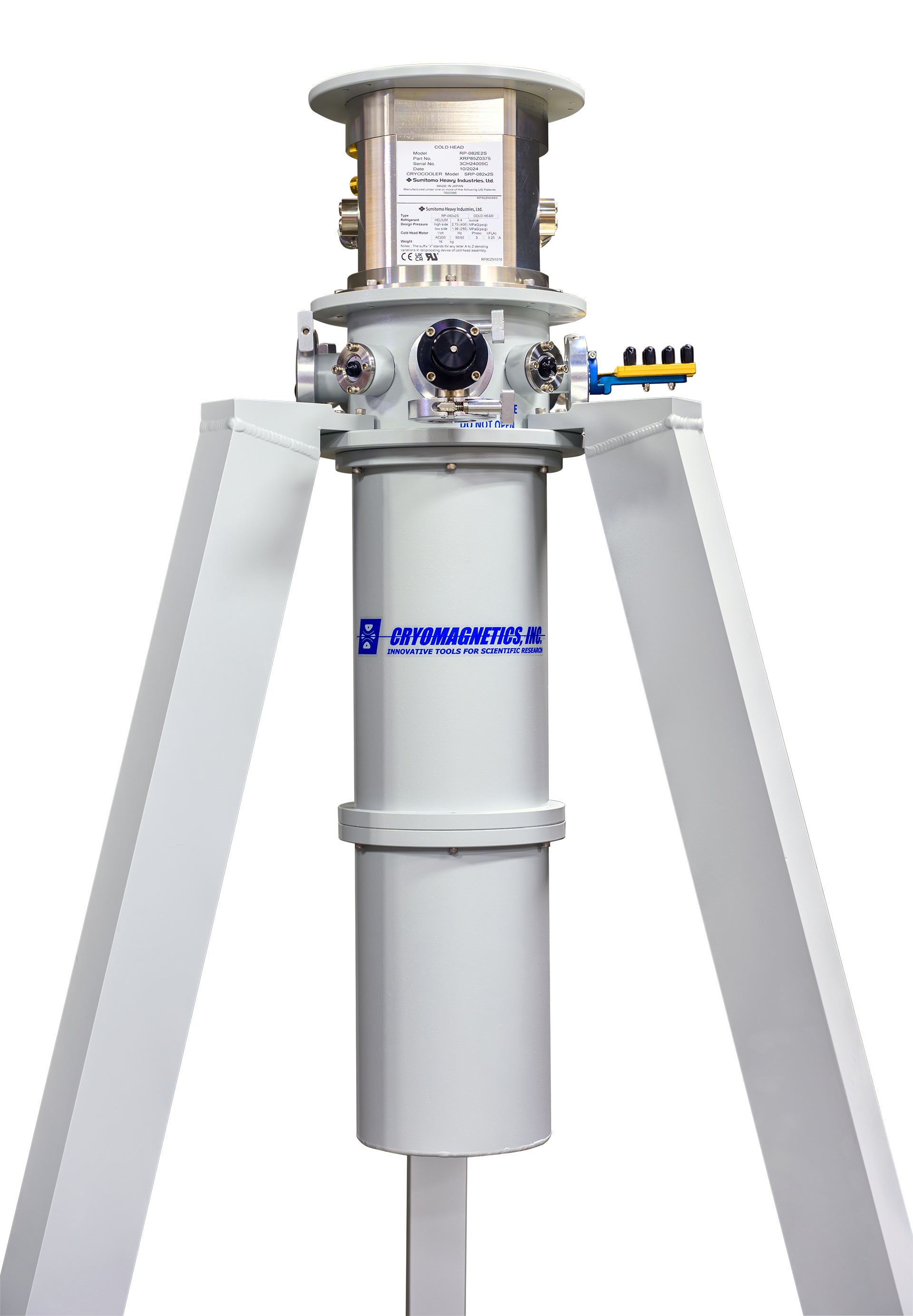

The OMNI-Mag series of superconducting magnet systems are compact cryogen-free, 4.2K cryocooler-based turn-key superconducting magnet system for materials characterization. Included in cold bore design are the OMNI-Mag-PK which features bottom facing sample access and a pulse tube cryocooler for low vibration or the OMNI-Mag-TT with inverted sample access and a Gifford McMahon cryocooler. The sample mount is mounted to the end flange of the magnet with the resultant sample temperature mirroring that of the magnet. <5K-60K Variable temperature is available as an option. Custom sample stages and wiring options are available by quote.
Cryomagnetics' OMNI-Mag series of superconducting magnet systems are compact cryogen-free, 4.2K cryocooler-based turn-key superconducting magnet system for materials characterization. Included in cold bore design are the OMNI-Mag-PK which features bottom facing sample access and a pulse tube cryocooler for low vibration or the OMNI-Mag-TT with inverted sample access and a Gifford McMahon cryocooler. The sample mount is mounted to the end flange of the magnet with the resultant sample temperature mirroring that of the magnet. <5K-60K Variable temperature is available as an option. Custom sample stages and wiring options are available by quote.
Core Features
4.2K Cryocooler Based
A choice of Pulse Tube or Gifford McMahon configurations selection dependent on sample access orientation and sensitivity to vibration.
Turn-Key System
Superconducting magnet, 4.2K cryocooler system, superconducting magnet power supply, temperature controller, thermometry and standard as well as custom sample mounts.
Ease of Use
Sample in vacuum as sample stage mounts directly to magnet. Sample exchanged effected by removal of tail section to gain access. Tail section must be evacuated prior to re-cooling.
Flexible Configurations with Customized Options Available by Quote
25mm to 76mm Sample Space Configurations
Optical Z Access Available as an Option
Standard Configurations
Solenoids: 5 - 9 Tesla
